SPECIFICATION
| NO. | Item | Unit | PAC-WSP-1712 |
|---|---|---|---|
| 1. | IMPEDANCE | Ω | 8±15% |
| 2. | SOUND PRESSURE LEVEL | dB | 95dB(2W/0.1m) ± 3dB at 2.0 KHz in 0.75cc BOX |
| 3. | INPUT POWER (NOM./MAX.) |
W | 1 / 1.5 in 0.75cc BOX |
| 4. | RESPONSE FREQUENCY | F0 | 900±20%Hz in 0.75cc BOX |

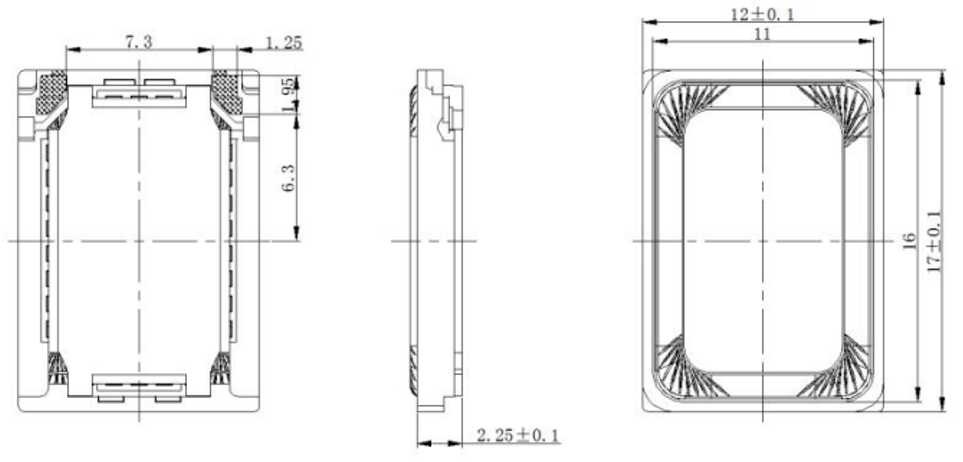

DIMENSION
